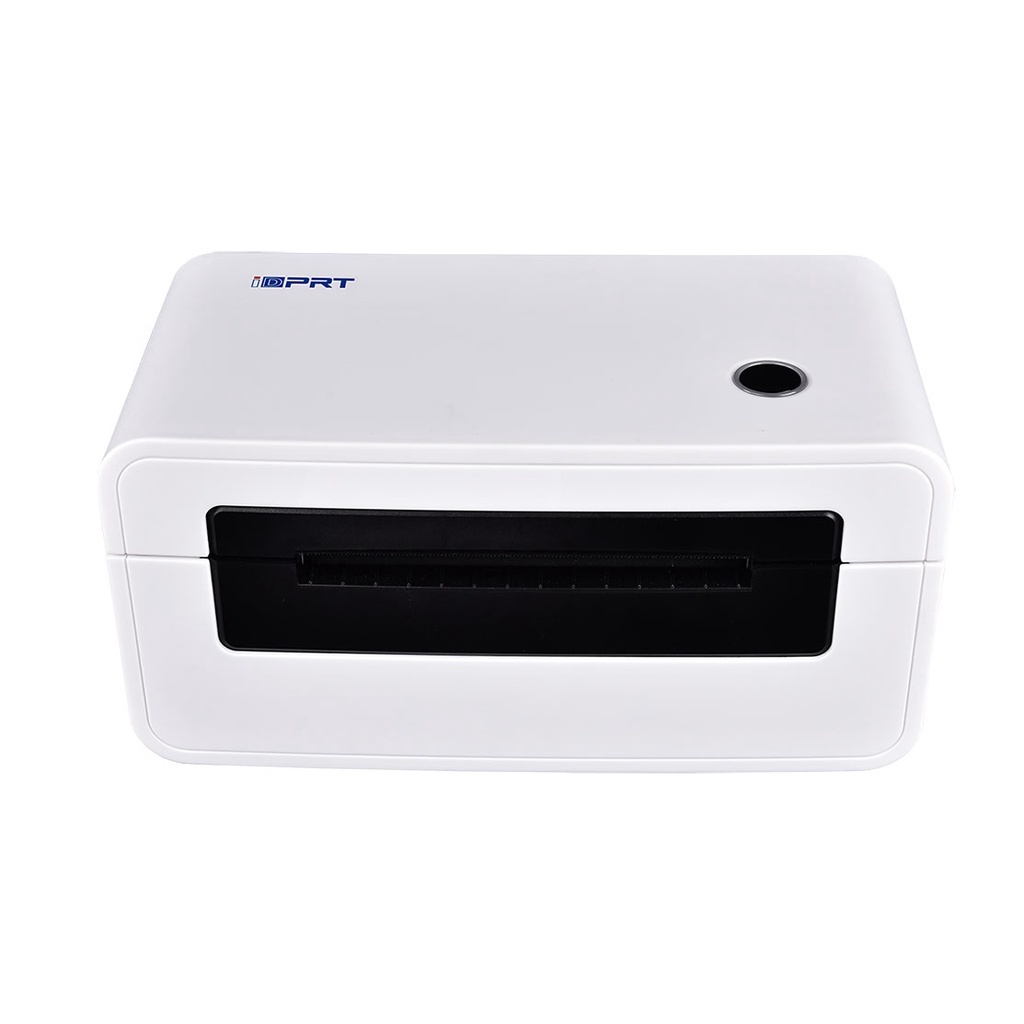

IDPRT Thermal Printer/Shopee Waybill printer SP410

● Direct thermal printing

● Up to 6 ips high speed printing with low noise

● Compact design, built-in adapter, save more space

● Printer head intensified coating and more durable

● Larger size rubber roller to prevent label sticking

● Auto label detection

● Error Reprint Technology

Model SP410
Method: Direct Thermal
Resolution: 203dpi(8dots/mm)
Speed Maximum: 150 mm/s
Width Maximum : 108 mm
Length Maximum: 300 mm
Spec Download Model: SP410
Printing Method: Direct Thermal
Processor : 32 bit RISC CPU
Memory RAM- 2MB, Flash -2MB

[Detection Sensors]
Label edge detection,Out of paper detection,Gap detection,Black mark detection,Cover open detection

[Media]
*Type: Folded paper or roll paper,die-cut label,black mark paper

*Width: 2''(50mm)-4.65''(118mm)

*Thicknes: 0.003''(60um) ‒ 0.0087''(220um)

*Paper Diameter: Max OD 5''(127mm)

*External folding paper:
W:100mmx L:100mm- 300mm

Programming language : TSPL

Software Label Design:
Bartender Ultralite, iDPRT Label Designer

Driver: WindowsVista,7,8,10

Resident Fonts: Full ASCII 8×16, 12×24 bitmap fonts, up to 10 times enlarge, 4 directional rotation

Code Pages
DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, Windows1250,1251,1252,

1253,1254,1255,1256,1257,1258ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15

Barcode
1D - Code 39, Code 93, Code 128UCC,Code 128 subset A, B, C

2D- QR Code

Interfaces Standard: USB

Control Panel: One Feed button(three colors for differentthree states) Tear paper from above Coordinated type of paper guidding
roller Automatic paper suction from back and then positioning

Power Adapter
Input- AC100V ~240V 1.5A 50/60Hz
Output- DC24V/2.5A

Environment
Operation
41℉( 5℃ )-104℉(40℃)， 30%-85%RH

Storage -4℉(-20℃)-122℉(50℃)，10%-90%RH

Physical Dimension
220mm(L)x 120mm(W) x 108mm(T)

Characteristics Weight 1.5kg

Optional Accessories : External 5'' roll stand or folding paper box

Agency Approvals CCC,FCC,CE
